General Wire Spring Model 88™

General Wire Spring Model 88™

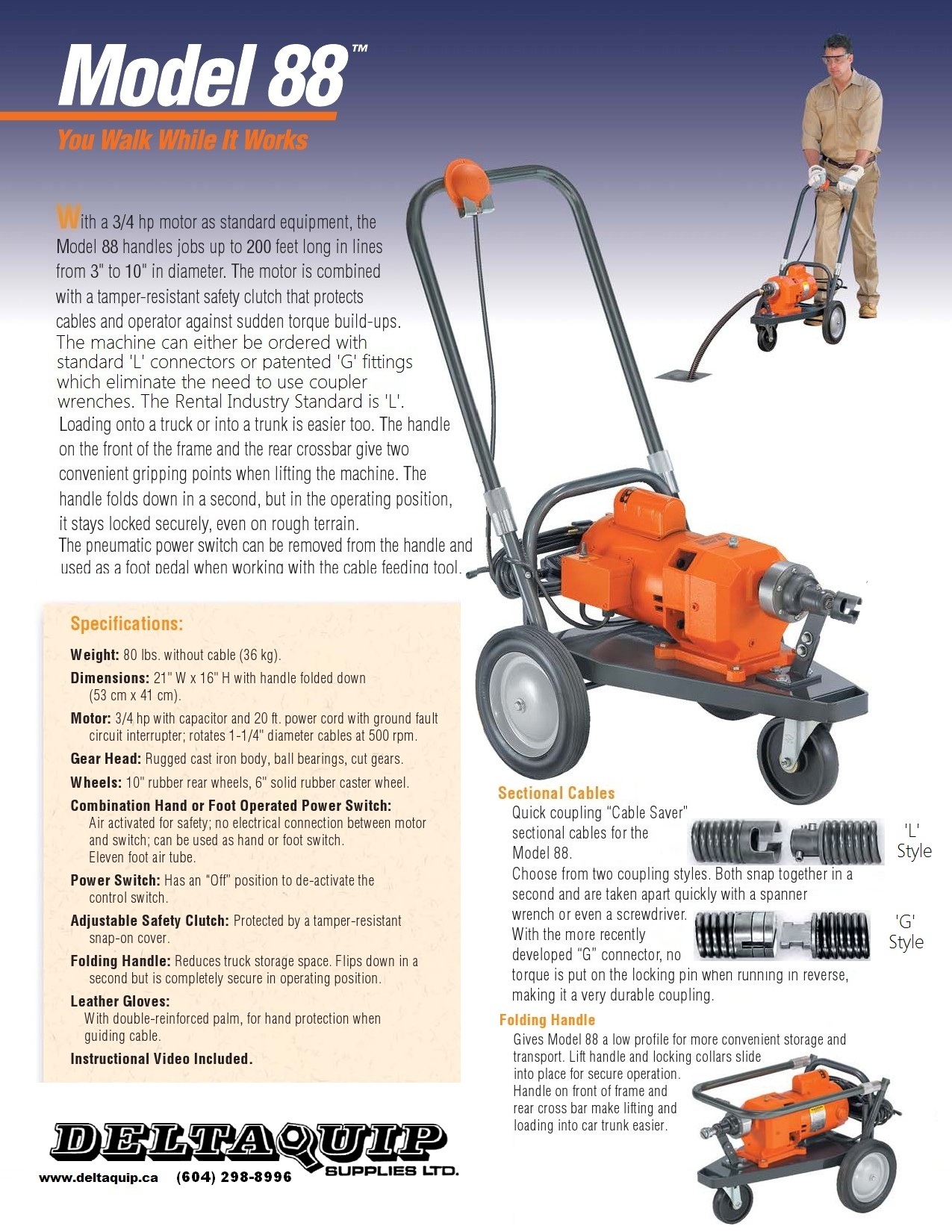

Most popular powered drain cleaner for 3” to 10” lines.

Cables are interchangeable with Electric Eel© brand.





  • Adjustable safety clutch set at 100 inch pounds.
  • Folding handle allows easy transport and storage.
  • Pneumatic power switch can be operated either by foot or hand.
  • 10” rubber rear wheels and 5” solid rubber caster for easy transport.
  • Gear head is made of rugged cast iron with ball bearings and cut gears.

Motor hp/volts:     ¾HP, 11.7Amp/110 volt, totally enclosed, rotates cables at 500 RPM
Power Cord:          20 feet (6.15m)
Capacity:                200 feet of 1¼” diameter cable available in either 4′, 8′ or 10′ lengths
Dimensions:          21″ wide x 16″ high with handle folded down

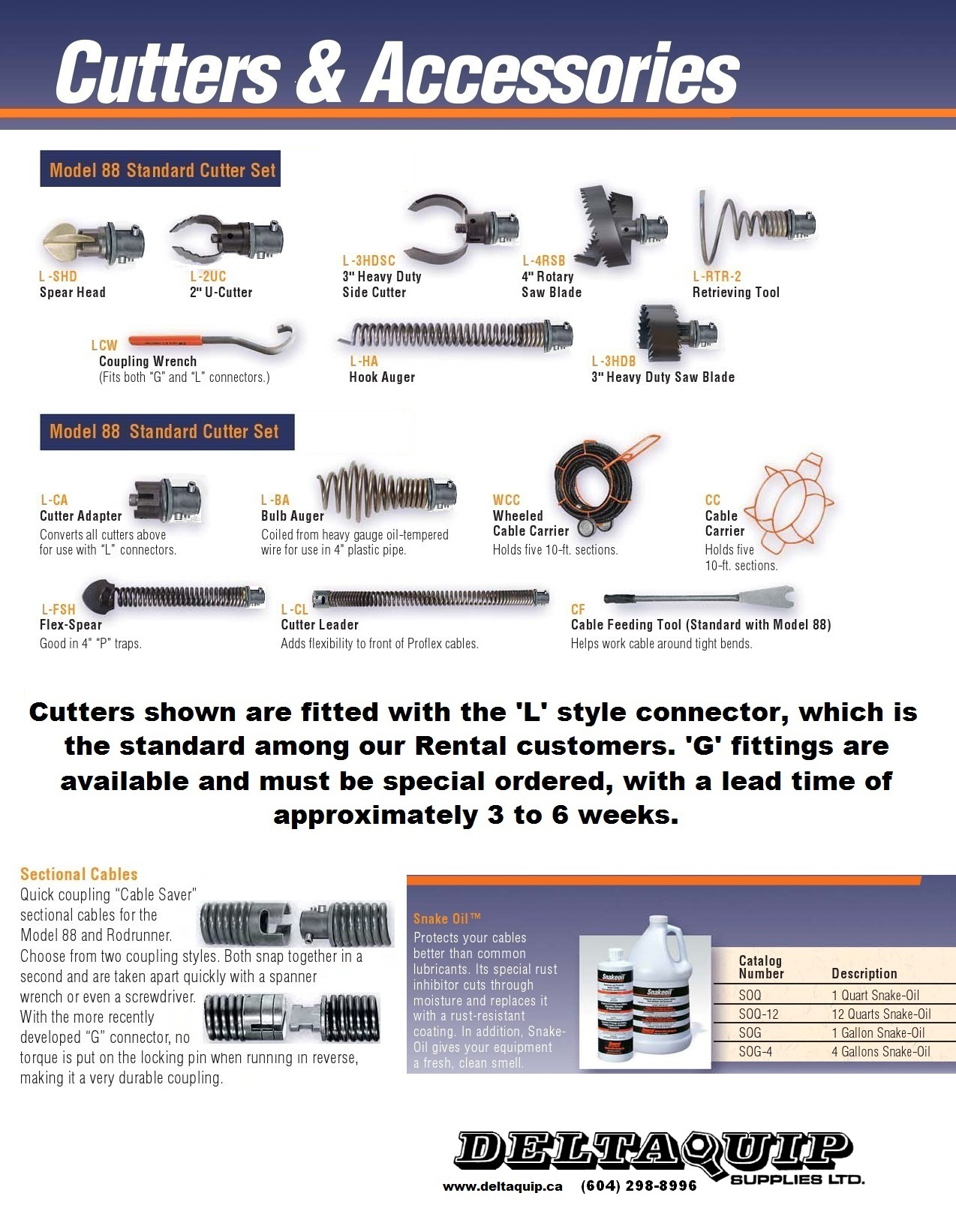

Accessories:         Includes: SHD (Spear Head Drill), HA (Hook Auger), 2UC (2″ U Cutter),                                                       3HDSC (3″ Heavy Duty Side Cutter), 3HDB (3″ Heavy Duty Saw Blade),                                                         4RSB (4″ Rotary Saw Blade), RTR-2 (Large Retrieving Tool),                                                                                           CW (Coupling Wrench) and Leather Gloves
Weight:                    80 lbs. (36.4Kg) without cables
Shipping Weight:   95 lbs. (43Kg) without cables
Cable Weight:         8′ length: 13 lbs. (5.85Kg), 10′ length: 16 lbs. (7.2Kg)
