Heavy Duty Garden Tiller

Heavy Duty Garden Tiller









Deltaquip Supplies Ltd. has supplied the Yard Marvel Renter Tiller since 1975. Its versatility rivals all other tillers of the same size. This is truly a time proven machine!



  • Designed for both Rental Store and Commercial use
  • Tilling depth limited to 12″ by safety hood. Tines may be reversed to surface cultivate at depth of 2 to 4″
  • Fully enclosed industrial grade chain case for trouble-free maintenance
  • Back Saver Rear Hitch allows instant handlebar height adjustment from a standing position
  • Deltaquip Supplies Ltd. has supplied the Yard Marvel 5B Renter Tiller since 1975. Its versatility rivals all other tillers of the same size. This is truly a time proven machine!

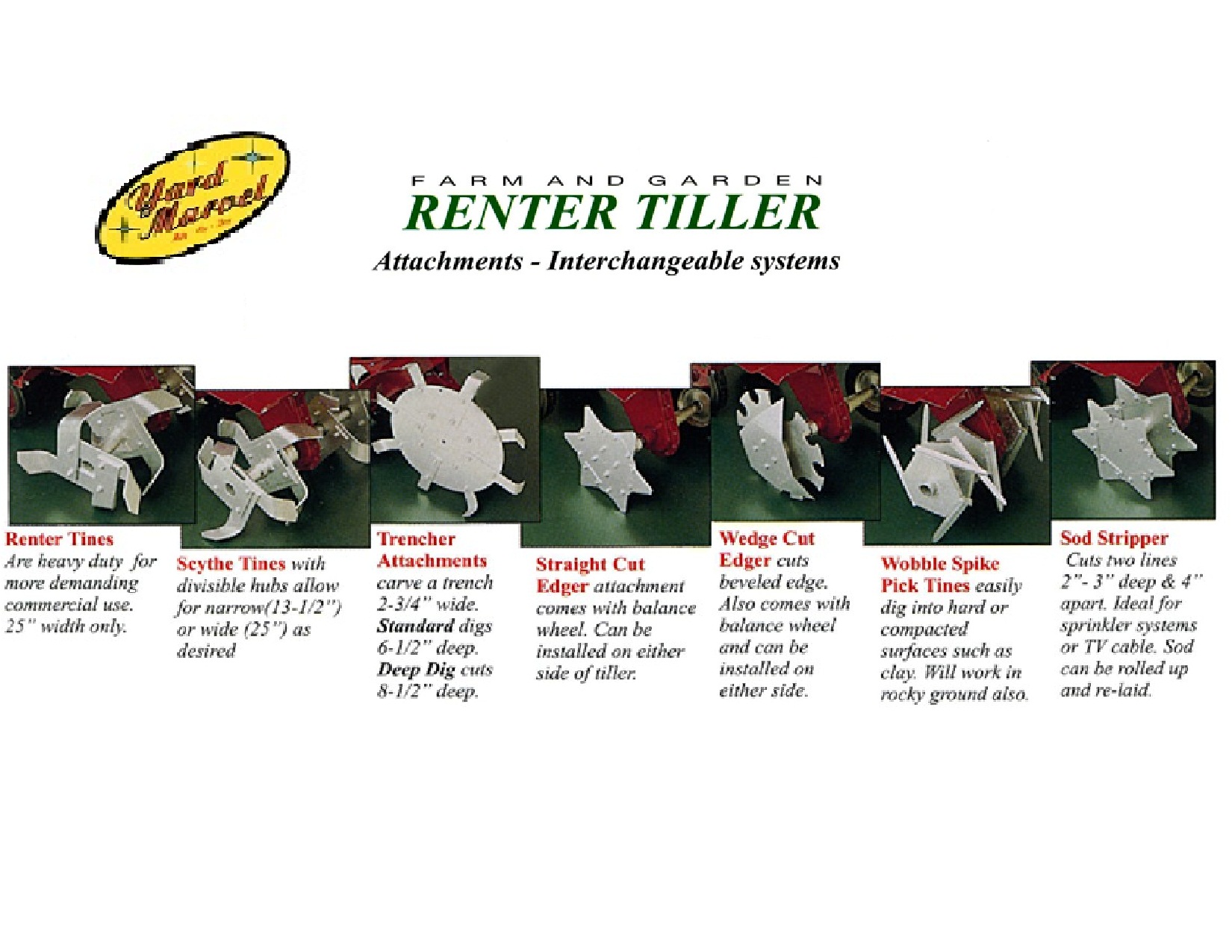

  • Other Features & more detailed photo

Model:                             Motor:
Motor Drive:
Tines/Hubs:
Wheels:
Weight:
Shipping Weight:
Dimensions:
Ship Dimensions (WxLxH):

Warranty:

Renter Tiller                                                                                                                                    5½HP Honda or Briggs and Stratton
Belt drive to chain case, chain to tine hub sprocket
Front tine, twist-on/off hubs, ¼” x 2¼” 5160 alloy spring steel, bolted to 10 GA plate
10” X 1¾” semi-pneumatic tires on height-adjustable rear hitch
130 lbs (58 Kg)
160 lbs (72¾ Kg)

Unit:21¼” x 28½” x 31″ (54cm x 72½cm x 79cm);                                                                    Tines: 12¾” x 20¼” x 13½” (32½cm x 51½cm x 34½cm)
1 year parts and labour
