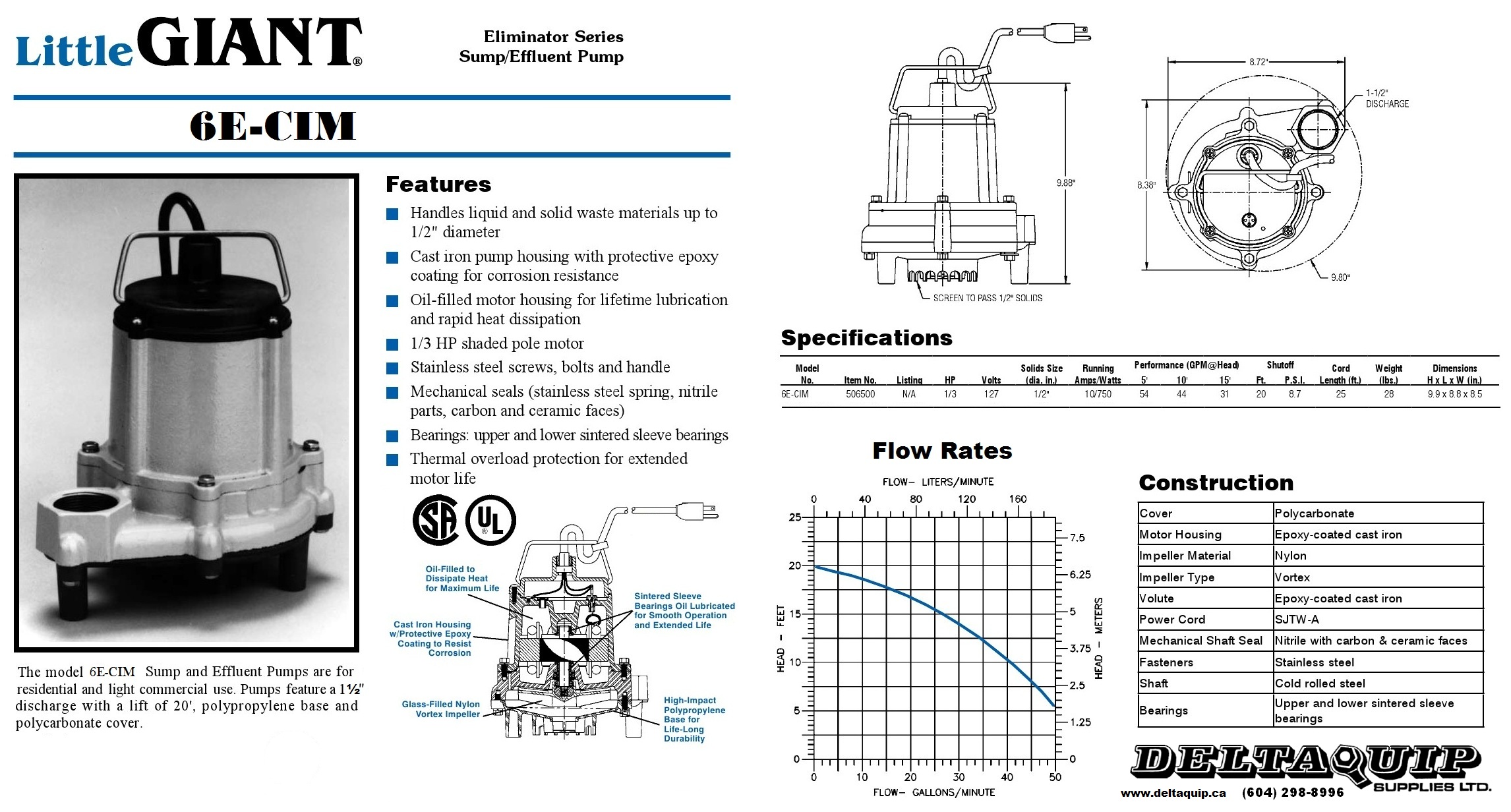

6E-CIM Wastewater/Effluent Pump

• Handles tough, demanding tasks of effluent waste transfer materials up to ½” spherical.
• Completely submersible.
• Oil-filled motor housing for extended life and rapid heat dissipation.
• Epoxy coated cast iron pump housing and volute help prevent rust and corrosion.
• Mechanical shaft seal.
• Rated for continuous duty.
• Can be used with a float switch for automatic operation.
• Thermal overload protection.

Model (Catalogue #) and Type:        6E-CIM (506710) Manual                                                                                                       Capacity (Imp. GPH / l/hr):                 2500 @5’ head  (11,400 l@1.5m) or 1,350 @15’ height  (6140 l@4½m)
Discharge:                                           1½”FNPT (38mm)
Shut-Off (max pump height):           20’(6.1m)                                                                                                                                Maximum Liquid Temperature:      140°F (60°C)
Motor:                                                   1/3hp/115V/10Amp/750Watt sealed, CSA approved
Cord Length:                                       10′ (25′ can be special ordered)
Pump Pressure:                                 8.7 P.S.I.                                                                                                                           Warranty:                                             1 year from Deltaquip’s invoice date
Dimensions (L x W x H):                   9.9 x 8.8 x 8.5″ (25½ x 22½ x 21½cm)
Shipping Dimensions:                       11 x 9½ x 12¾” (28 x 24 x 32½cm)
Weight:                                                  23 lbs (10.3Kg)
Shipping Weight:                                 25½ lbs (11½Kg)
