The 8 Series pumps handle over 45 Imperial gallons per minute…over 2700 gallons per hour.
- Multiple switch options for automatic operation.
- 1¼” and ¾” garden hose adapters available.
- Fully sealed, serviceable motor designed for continuous duty.
- Epoxy coated cast aluminum housing with nylon impeller.
- Removable inlet screen for easy cleaning.
- Can be used with either a float or diaphragm switch for automatic operation.
- Upper and lower sintered sleeve bearings.

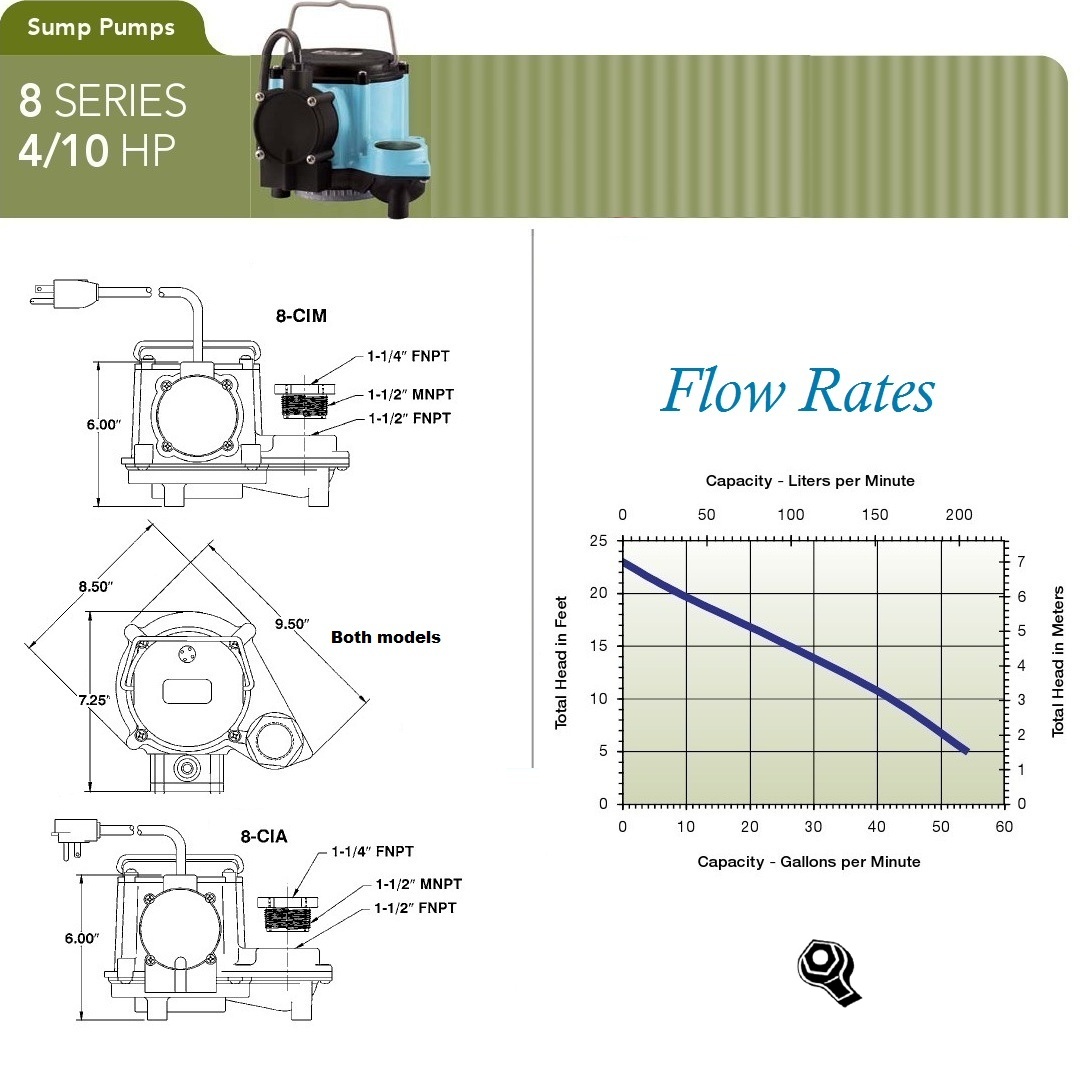

Model (Catalogue #) and Type: 8-CIM (508057) Manual; 8-CIA (508157) Automatic, integral diaphragm switch Capacity (Imp. GPH / l/hr): 2700 @5’ head (12,280 l@1½m) or 400 @20’ height (1800 l@6m) Discharge: 1½”FNPT (38mm)
On Level: 8-CIM – Continuous; 8-CIA – 7-10″ (18-25½cm) Off Level: 8-CIM – Continuous; 8-CIA – 1-4″ (2½-10.2cm) Shut-Off (max pump height): 22.9’(7m) Maximum Liquid Temperature: 140°F (60°C)
Maximum Pump Pressure: 9.9 p.s.i. Motor hp/volts: 4/10hp, 10Amp, 115V sealed, 830 Watt, CSA approved
Cord Length: 10′ (25′ can be special ordered)
Warranty: 1 year from Deltaquip’s invoice date
Dimensions (L x W x H): 9½ x 8½ x 6″ (24 x 21½ x 15¼cm)
Shipping Dimensions: 10¼ x 10¼ x 9¾” (26 x 26 x 25cm)
Weight: 8-CIM – 17¾ lbs (8.1Kg); 8-CIA – 18 lbs (8.2Kg)
Shipping Weight: 8-CIM – 18.9 lbs (8.6Kg); 8-CIA – 19.1 lbs (8.7Kg)
