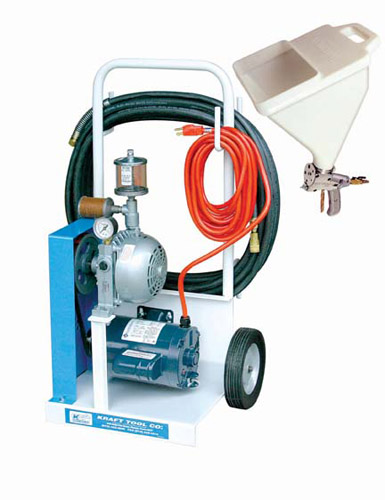

PC300 Texture Machine

• Designed for spraying walls, ceilings, fireproofing and stucco
• Built-in steep angle on hopper allows work with large capacities
• Five pattern adjustments at gun nozzle with special adjusting nut
• Relief valve located on compressor allows adjustment of spray patterns
• Trigger stop limits amount of travel, allowing control of material flow
• Large four-finger bronze trigger on gun
• Large molded hand grip at rear of hopper
• Adjustable air flow regulator at gun connection to hose
• Includes Texture machine, Gun, Hopper and 50 ft or ½” air line with fittings
• Minimal amount of oil required to lubricate compressor
• Patented Super Pro gun cylinder and shut off valve

Model:                                  PC300
Motor:                                  110 volt, 1 HP capacitor start with manual re-set thermal overload protection
Compressor:                      Rotary vane type
Output:                                 6.2 CFM free air @ 25 p.s.i.
Hose:                                    50 feet (15¼m) x ½”, 200 p.s.i. rated
Wheels:                                2 – 8″ x 1¾”; wheel and tire have 100 lb load rating
Hopper Capacity:              2½ U.S. Gallons (9½ litres)
Hopper Angle:                   40°
Dimensions:                      15″ long, 19″ wide, 34″ high, (38 x 48½ x 86½cm)
Shipping Dimensions:     18¼ x 19 x 35″ (46½ x 48½ x 89cm)
Weight:                               103 lbs. (46¾Kg)
Shipping Weight:              108 lbs. (49 Kg)

Order Number PC301

Order Number PC501
