For Decorative Use

For water transfer,

recirculation

and water displays

Most commonly used with tile saws, pipe threading machines welding, statuary fountains and air conditioners.
Pumps soap solutions, plating solutions and fertilizers where materials are compatible.
Oil-filled motor housing with a nitrile shaft seal, designed for continuous duty.
Commercial, industrial or residential use, where lesser amounts of liquid must be transferred or recirculated.
Removable polypropylene screen for easy cleaning.
Epoxy coated cast aluminum housing and cover.
Polypropylene volute.

Model/Catalogue Number:	1-MAT (521286)
Motor Specs:	1/200HP, 115V, 1.1 Amp, 70 Watt, Thermally protected, CSA approved

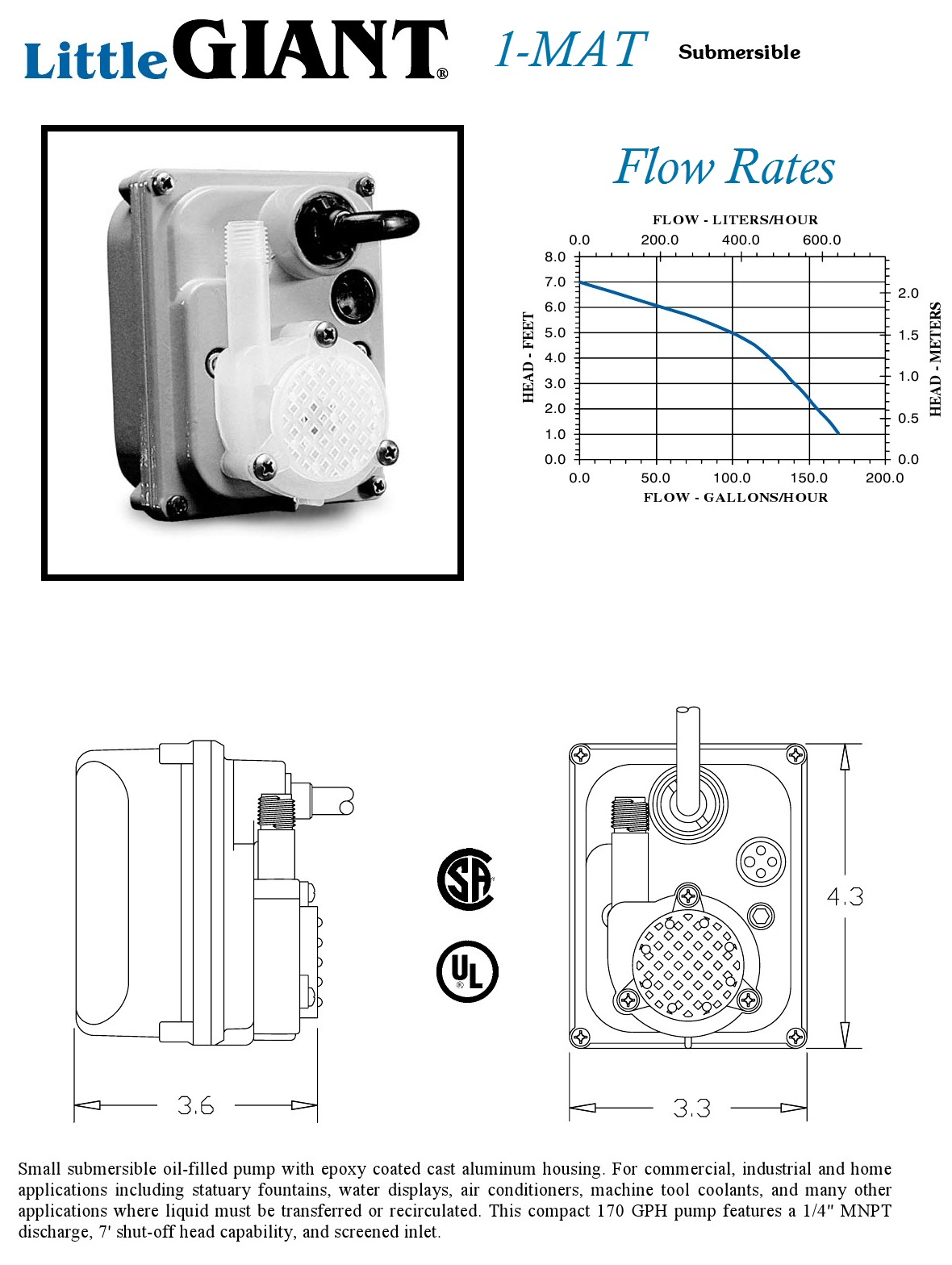

Capacity (GPH-ltr/hr):	140 @1’ head (643 l@.3m)
Discharge:	¼”MNPT (6mm)
Shut Off (max head):	7 ft (2.1m)
Pump Pressure:	3 p.s.i
Maximum Liquid Temp:	120°F (49°C)
Power Cord:	10′ (3m)
Dimensions (LxWxH):	3.6 x 3.3 x 4.3″ (9 x 8½ x 11cm)
Shipping Dimensions:	6¼ x 6¼ x 4-3/8″ (16 x 16 x 11cm)
Weight:	3.33 lbs (1½Kg)
Shipping Weight:	4 lbs (1.¾Kg)
Warranty:	1 year from Deltaquip’s invoice date
